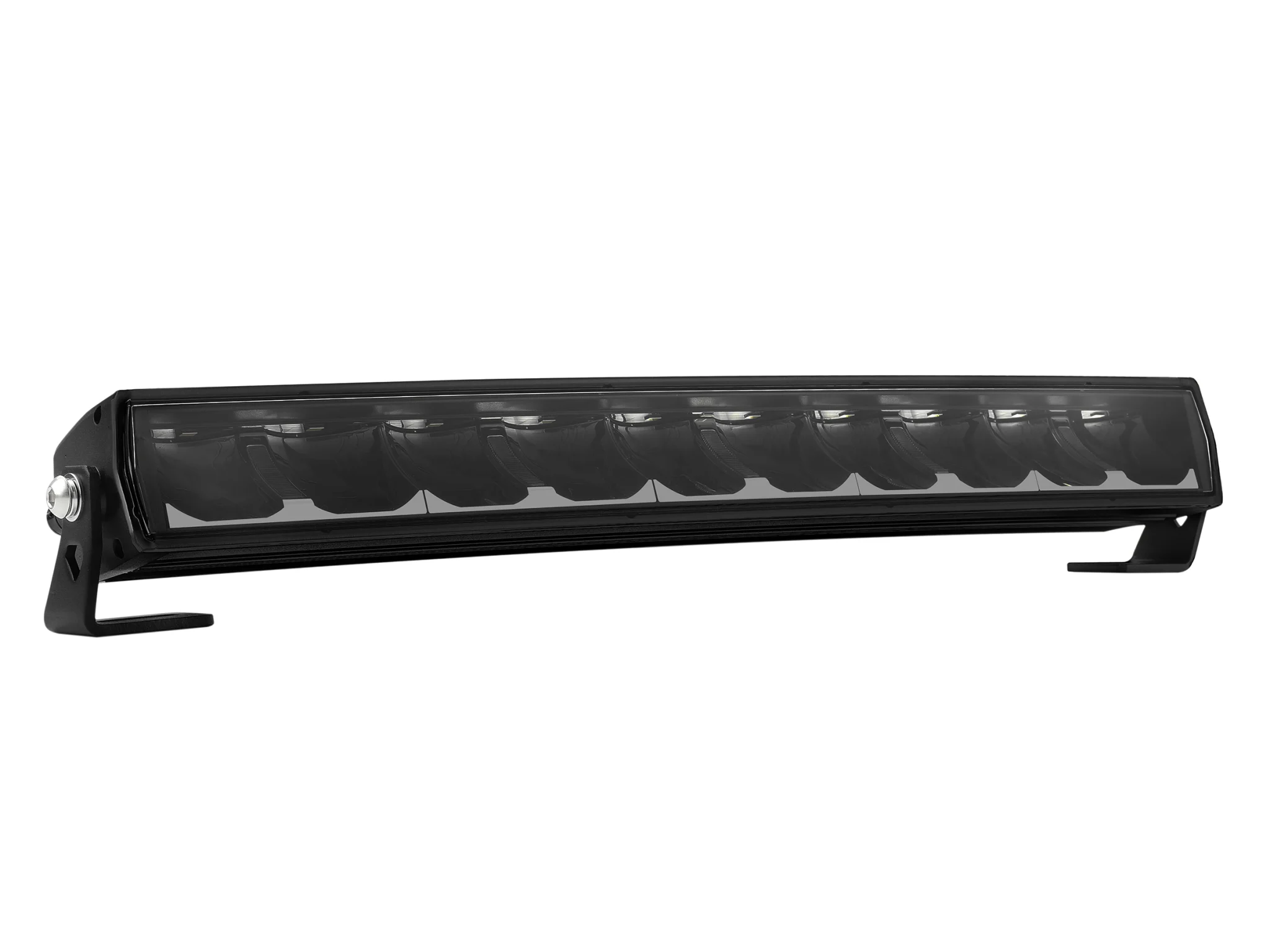

LED light bar curved with position light 517 mm
Recommended retail price€ 269
BriodLights LED Light bar with position light in white and amber. The ledbar measures 1 lux at 480 m and generates 11500 actual lumens. Comes with brackets for side and bottom mounting.
E-Approved3 year function warranty

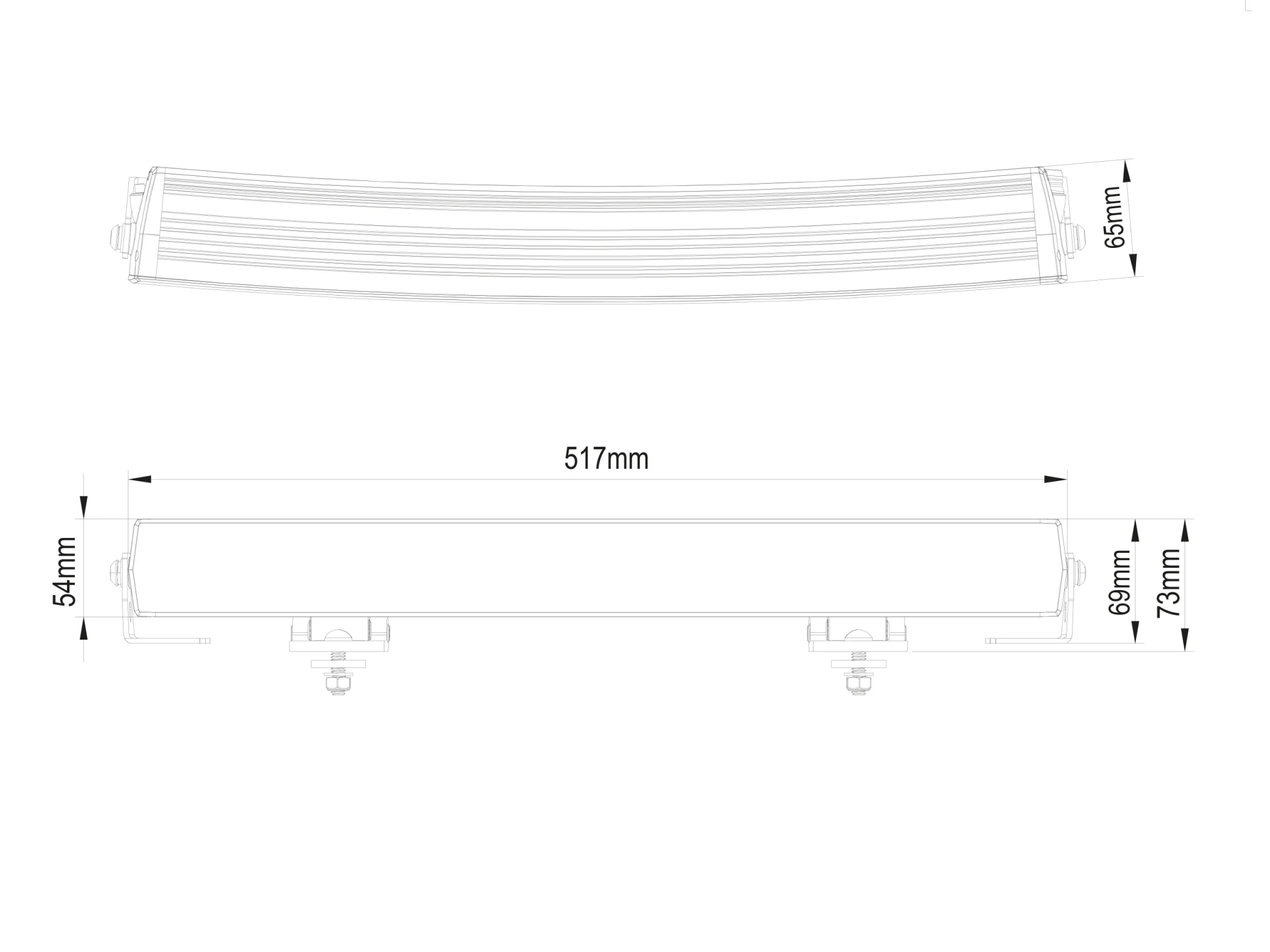

Drawing

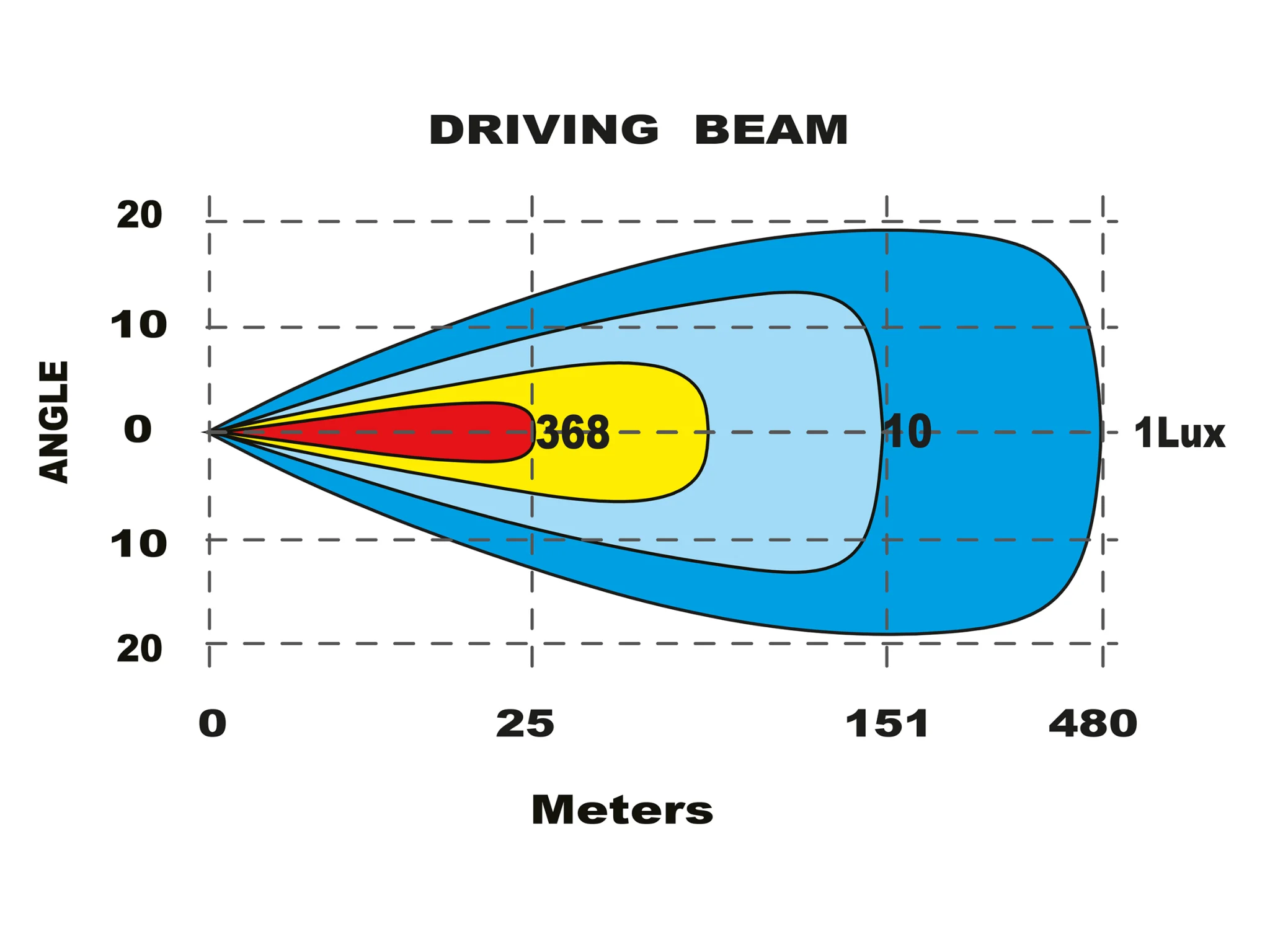

Light Pattern
Technical Specifications
| SKU | 15227 |
|---|---|
| Weight | 2,38 kg |
| 1 Lux Distance | 480 m |
| Cable Length | 0.5 m |
| Colour Temperature | 6000 K |
| Connection | DT |
| EMC | R10 |
| Housing Material | Aluminium |
| IP Rating | IP69K |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 11,500 lm |
| Operating Temperature | -40 °C to +60 °C |
| Power Consumption | 150 W |
| Nominal Current at 12 V | 8.7 A |
| Nominal Current at 24 V | 4.1 A |
| Theoretical Lumens | 14,500 lm |
| Total Diodes | 10 |
| Voltage | 9–36 V |
| WxHxD | 517 × 54 × 65 mm |
| Approvals | CE |
