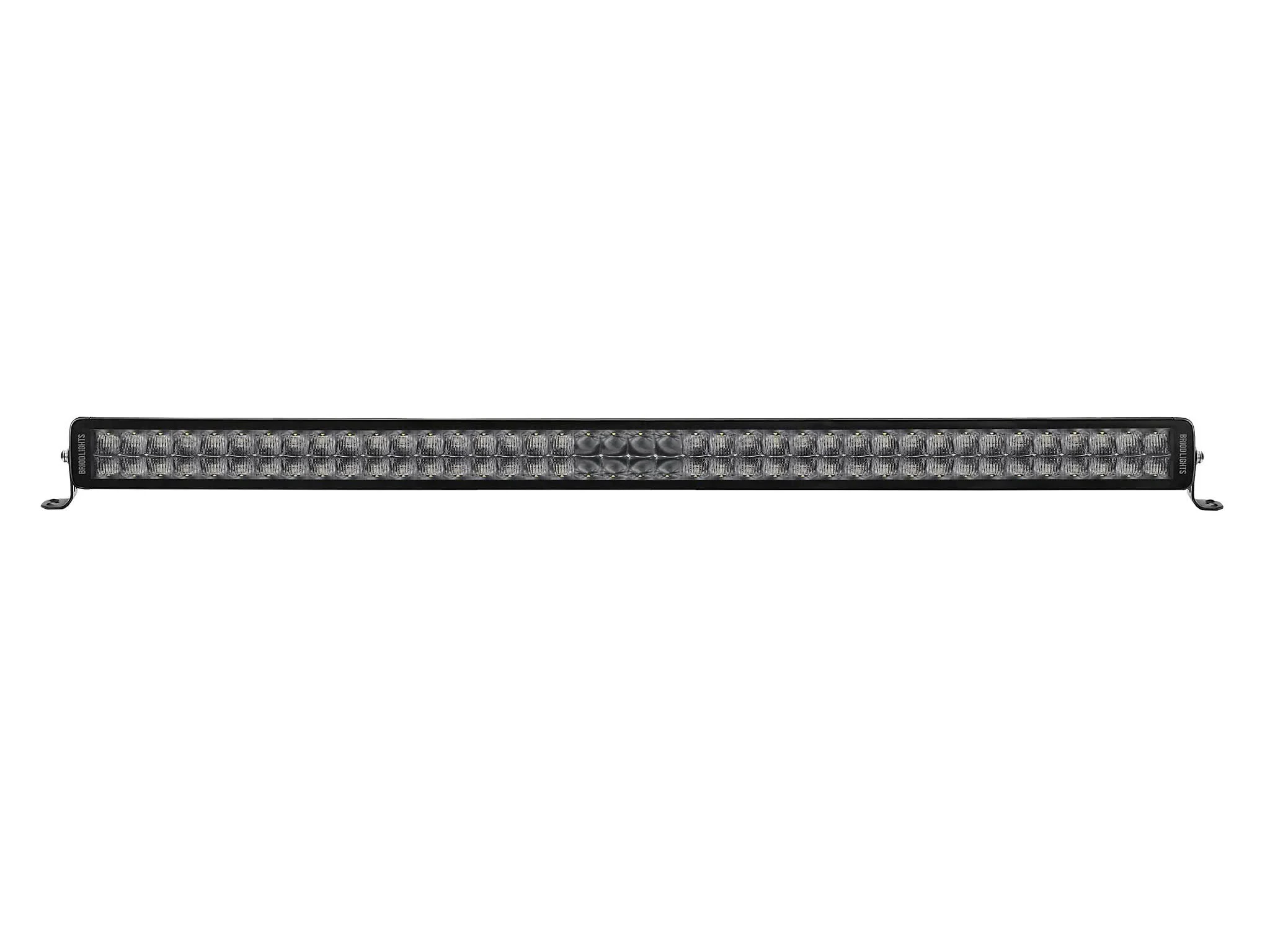

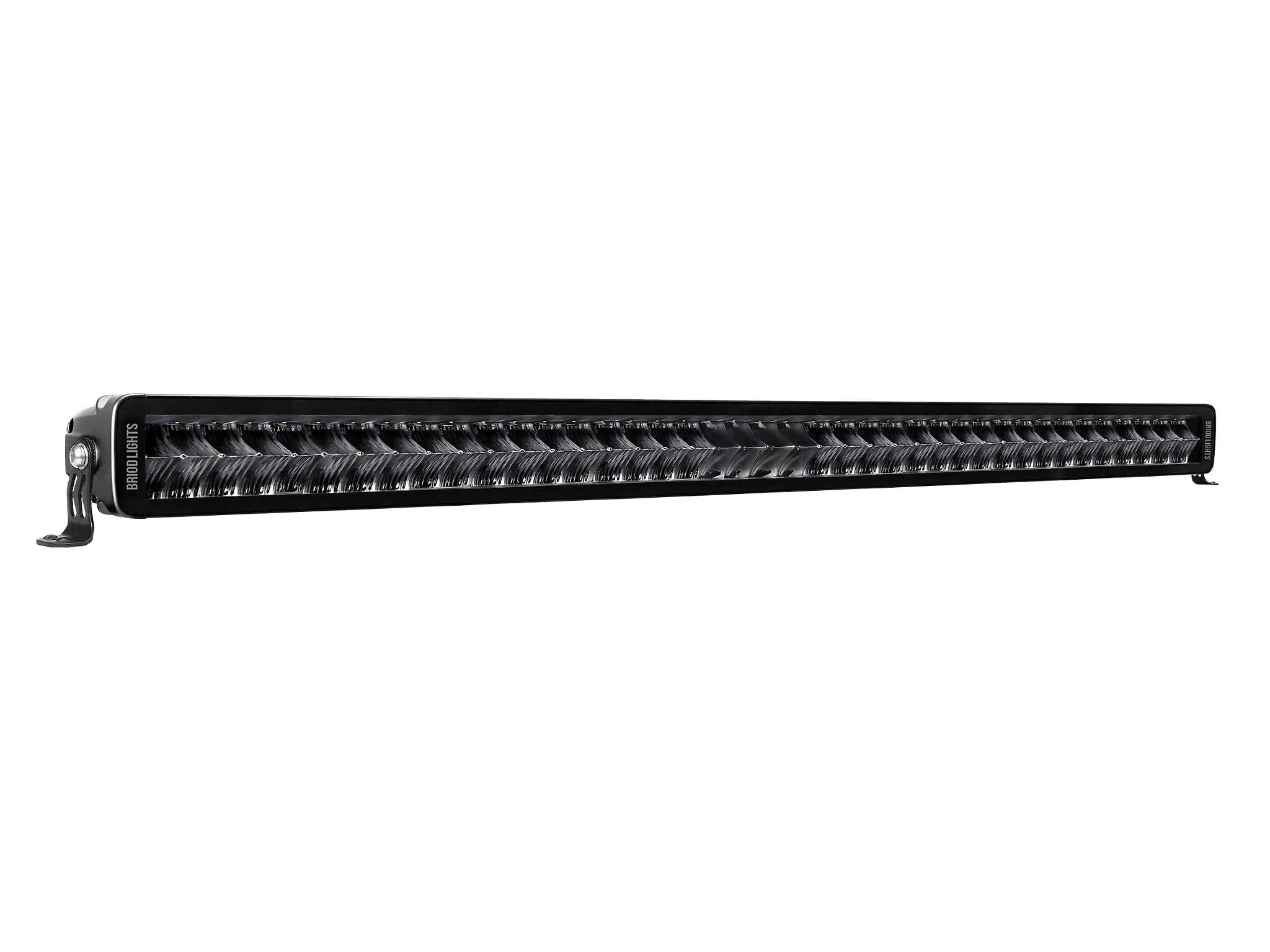

LED light bar with smoked glass 815 mm
Recommended retail price€ 329
Introducing the BriodLights LED light bar 815 mm with dual rows of 5W high-performance Osram LEDs, producing a staggering 7840 lumens of bright, high-quality light.
Crafted from premium materials, including a smoked glass and a black powder-coated aluminum housing, the BriodLights LED light bar with smoked glass is both rugged and durable, able to withstand the toughest conditions. It is shockproof and waterproof, providing you with an extended lifespan.
With stainless steel mounting brackets included for both side and under mounting, the LED light bar is both flexible and versatile. It also has impressive lighting capabilities with a wide beam pattern.
IP68/IP69K, ECE R112, R10, R7, CE.
Please note that the dimensions listed for the light bar are without brackets.
E-Approved3 year function warranty
Light Pattern
Technical Specifications
| SKU | 15229 |
|---|---|
| Weight | 3,75 kg |
| 1 Lux Distance | 485 m |
| Beam Pattern | Combo |
| Cable Length | 1 m |
| Colour Temperature | 5700 K |
| Connection | DT |
| Housing Material | Aluminium |
| IP Rating | IP69K |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 7,840 lm |
| Operating Temperature | -30 °C to +40 °C |
| Power Consumption | 300 W |
| Nominal Current at 12 V | 9.2 A |
| Nominal Current at 24 V | 4.7 A |
| Theoretical Lumens | 25,200 lm |
| Total Diodes | 60 |
| Voltage | 10–30 V |
| WxHxD | 815 × 70 × 67 mm |
| EMC | R10 |
