Key Features
- 11 600 lm
- 1 lux at 960 m
- 3 year function warranty

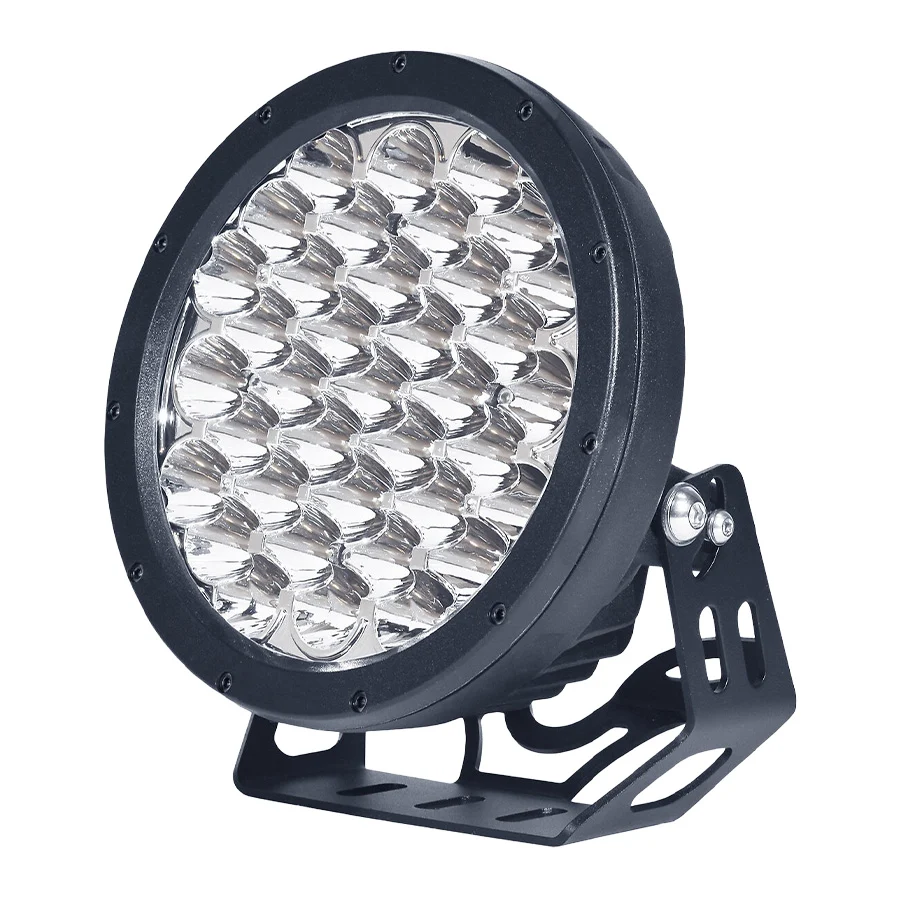

ULTRA LED driving light 9″
Recommended retail price€ 109
BriodLights Ultra LED driving light brings a whole new level to night time driving. Ultra 9″ features a powerful light output: 1 lux at 960 m and 11600 effective lumens. With 5000 K the light emits a
soft light accentuating contours especially in snowy conditions. Easy to install thanks to stable brackets in stainless steel.
Stone protection glass is included
3 year function warranty

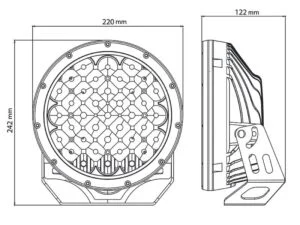

Drawing

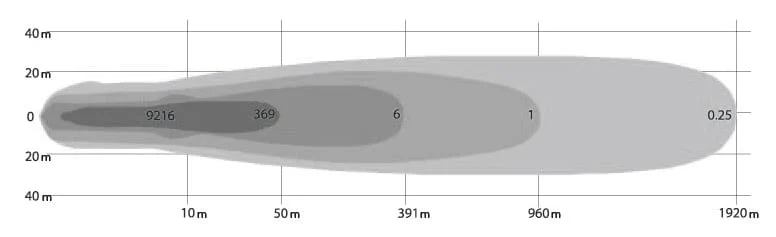

Light Pattern
Technical Specifications
| SKU | 15810 |
|---|---|
| 1 Lux Distance | 960 m |
| Beam Pattern | Combo |
| Colour Temperature | 5000 K |
| Connection | DT |
| Diameter | 220 mm |
| Housing Material | Aluminium |
| IP Rating | IP68 |
| Lamp Type | LED |
| Lens | PMMA |
| Lumen Measured | 11,600 lm |
| Power Consumption | 13.5 W |
| Nominal Current at 12 V | 11.25 A |
| Nominal Current at 24 V | 5.62 A |
| Theoretical Lumens | 16,600 lm |
| Total Diodes | 37 |
| Voltage | 9–32 V |
