Key Features
- LED driving light 9″
- 1 lux at 644 m

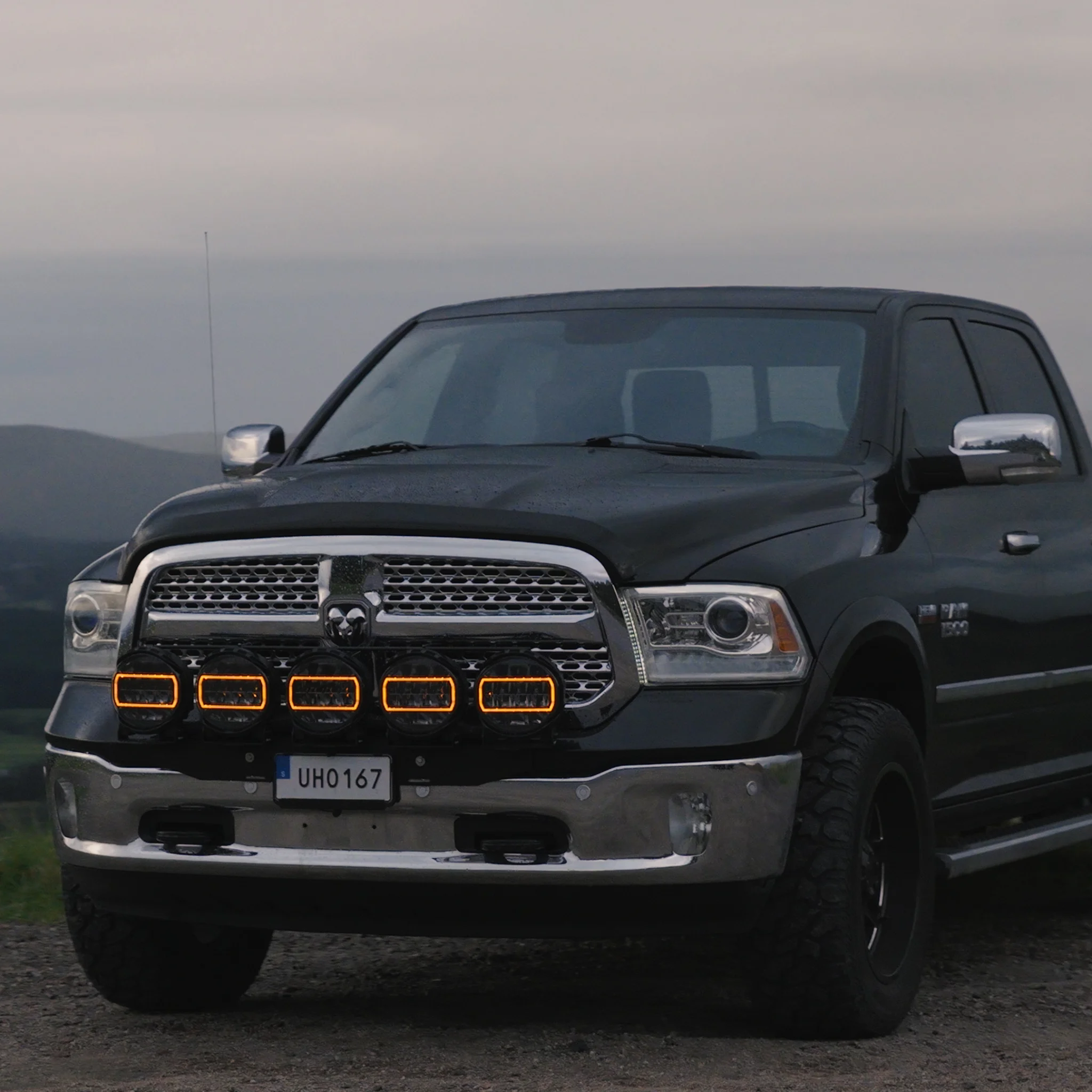

- Dynamic position light in white and amber

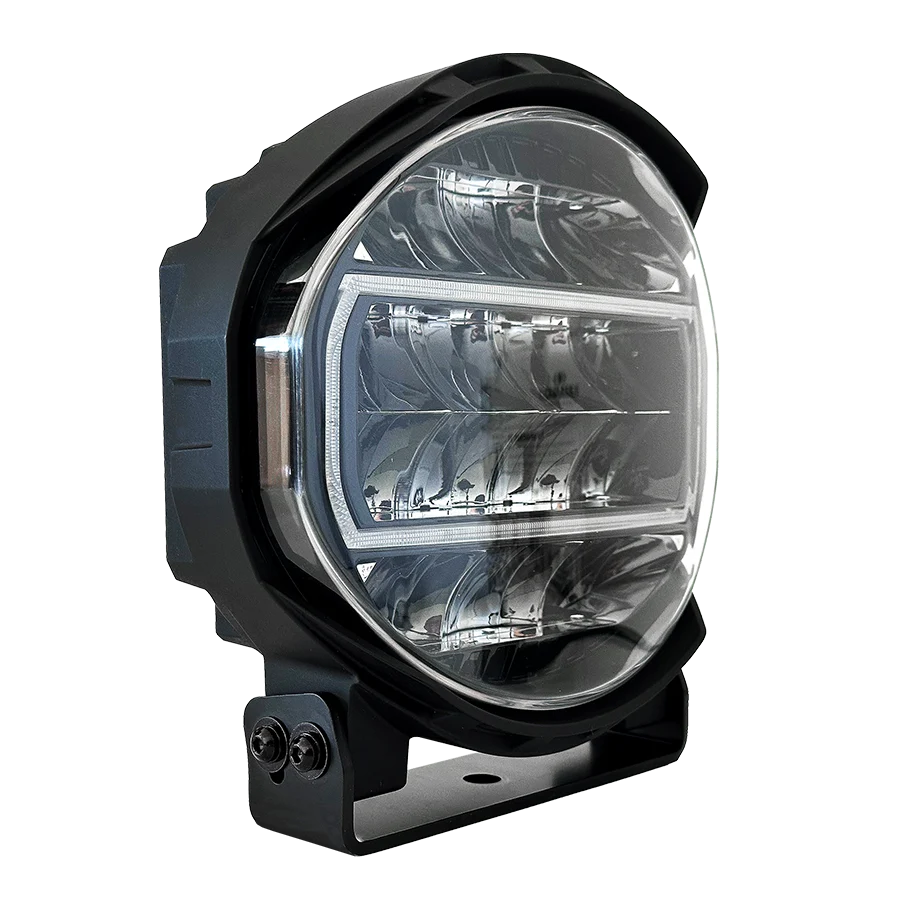

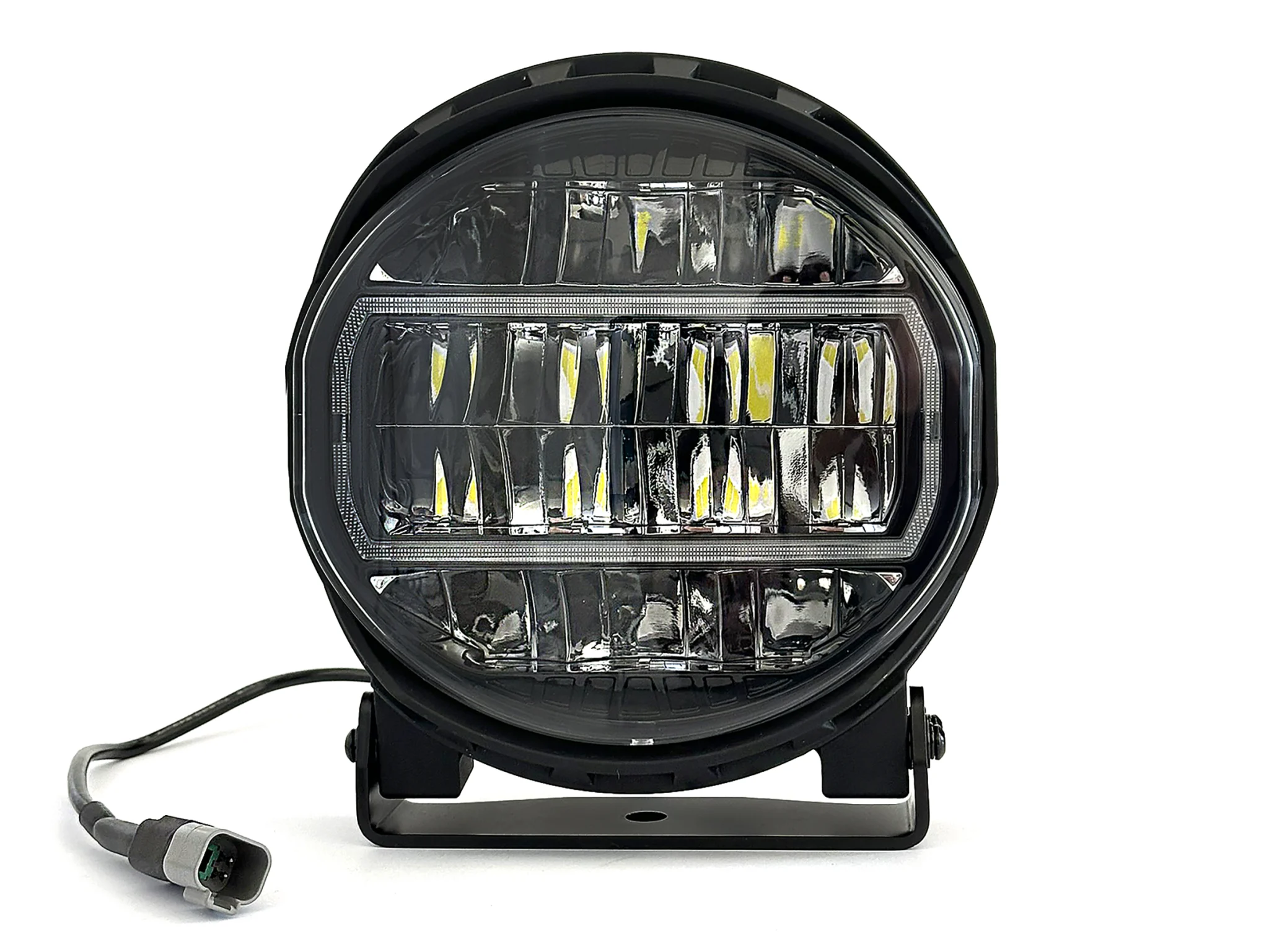

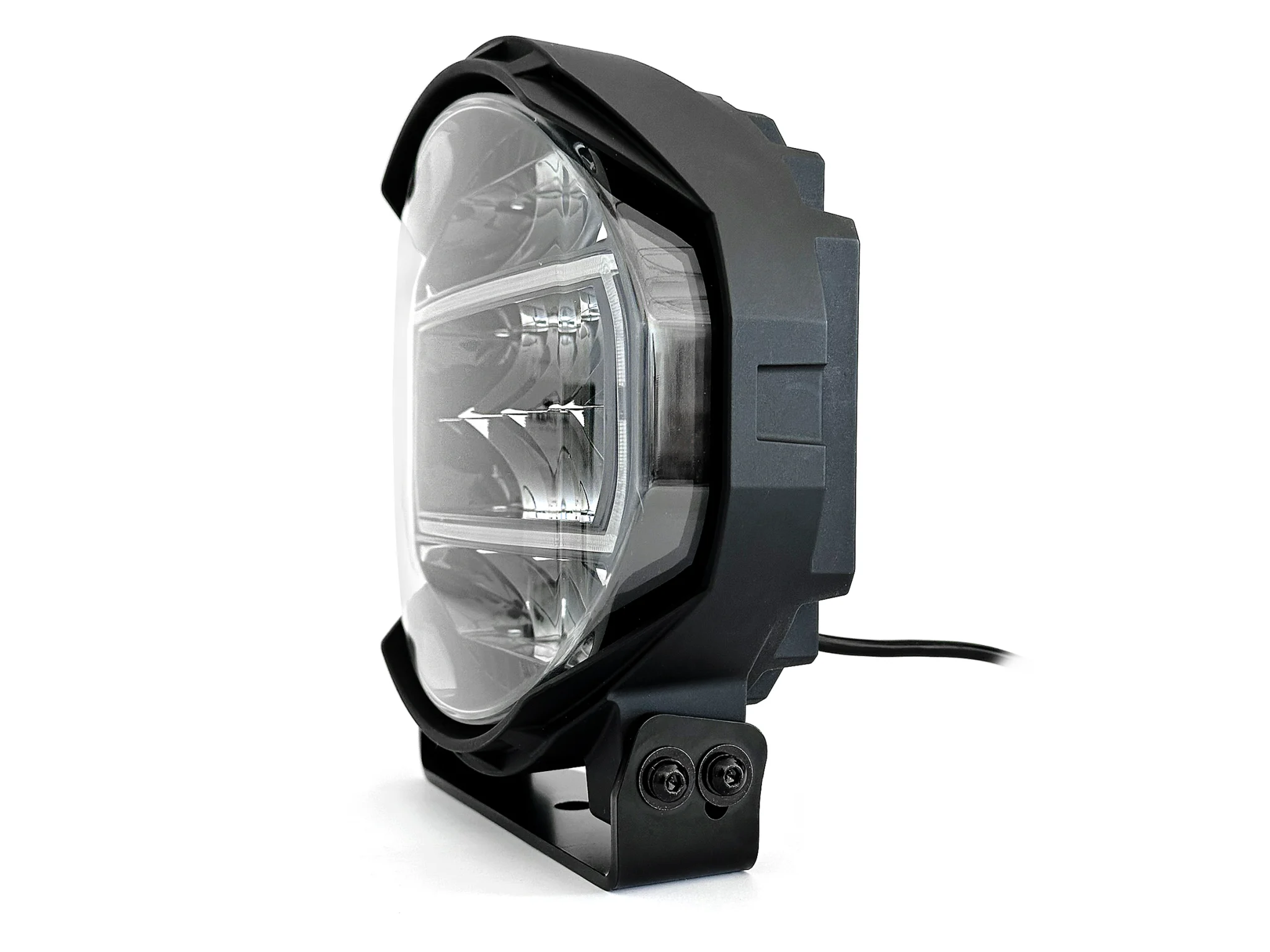

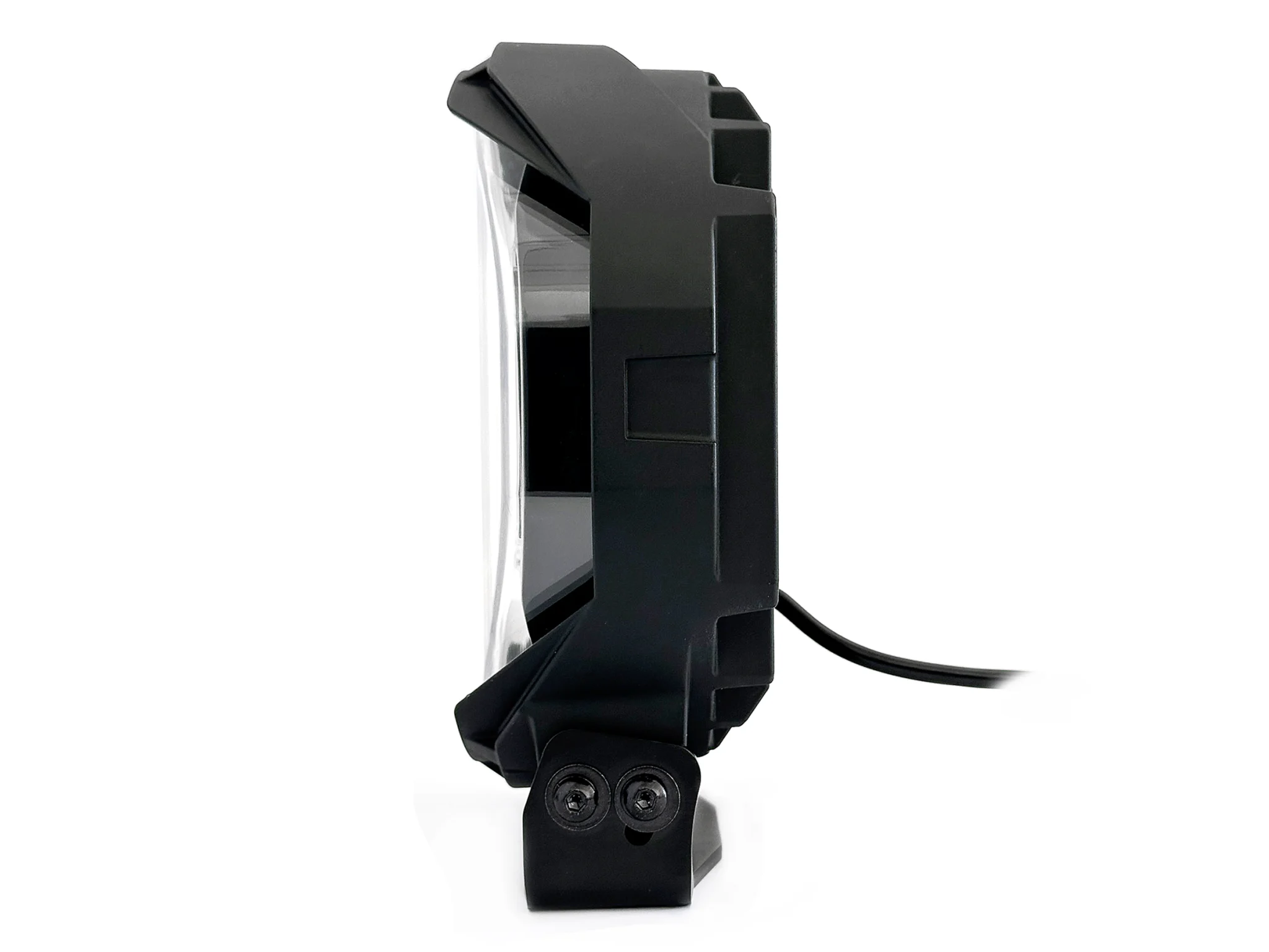

EDGE LED DRIVING LIGHT 9″
Recommended retail price€ 179
As part of the popular Edge series, BriodLights introduces a round driving light with powerful brightness. BriodLights Edge 9″ is a high-performance driving light that blends sleek design with advanced optics– ideal for those who want a compact size without sacrificing light output. Delivering 6,900 effective lumens and a beam reaching 644 meters at 1 lux, it provides sharp, focused illumination exactly where you need it – without unwanted spill light.

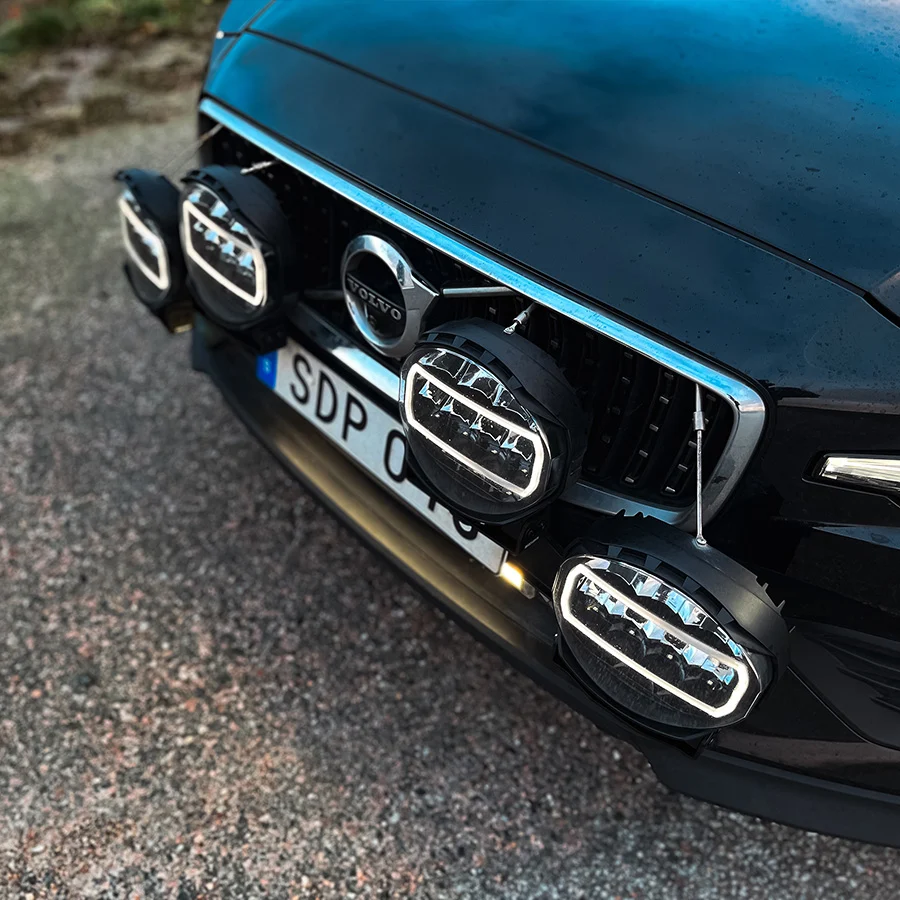

Its advanced optics ensure an even, balanced light pattern, while the dynamic position light offers a choice of white or amber to complement your vehicle’s style. The Edge 9″ is perfect for passenger cars, pickups, and light commercial vehicles alike. As with all BriodLights products, it’s built to hold – and backed by our 3-year functional warranty.
E-Approved3 year function warranty

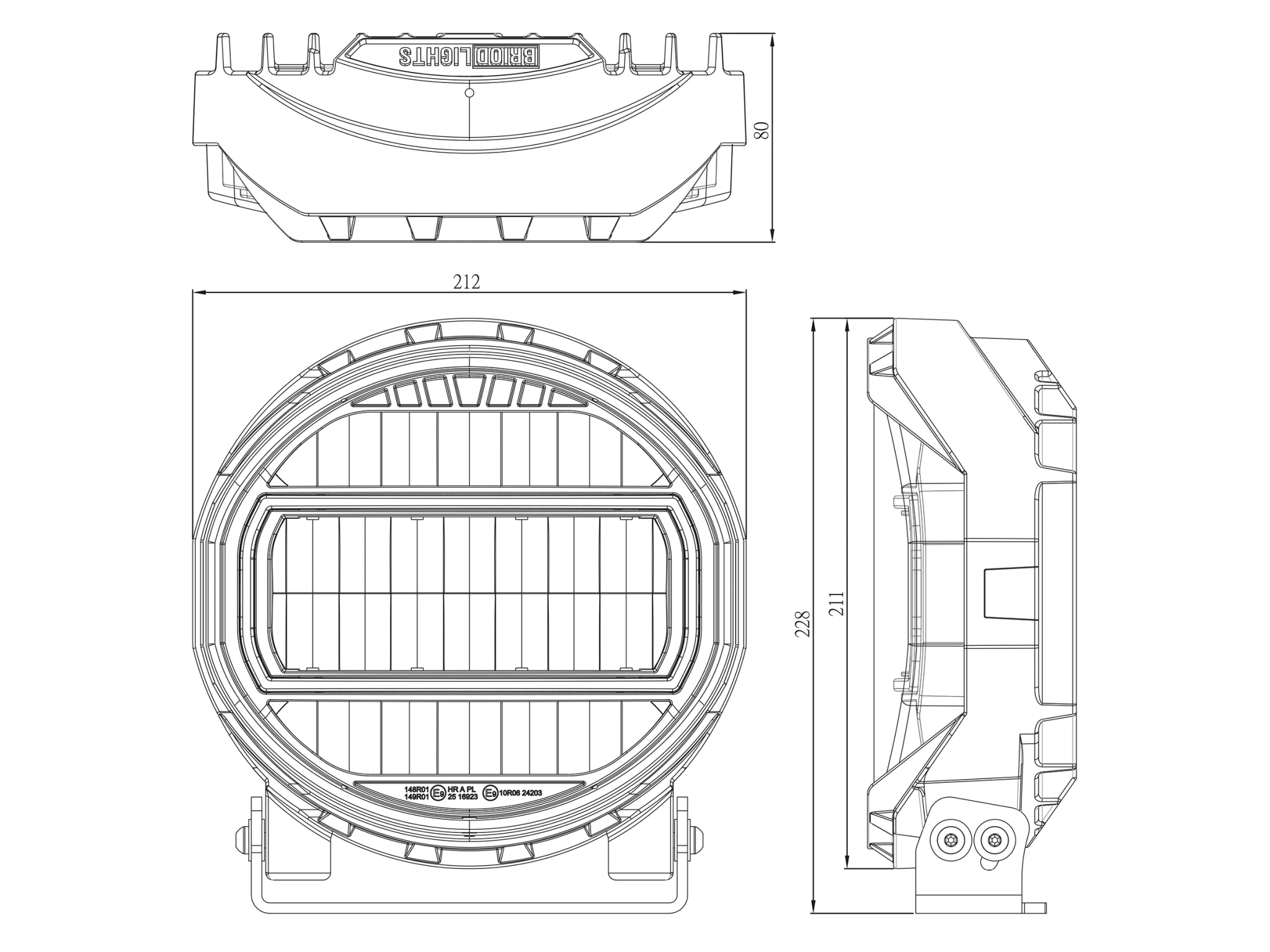

Drawing

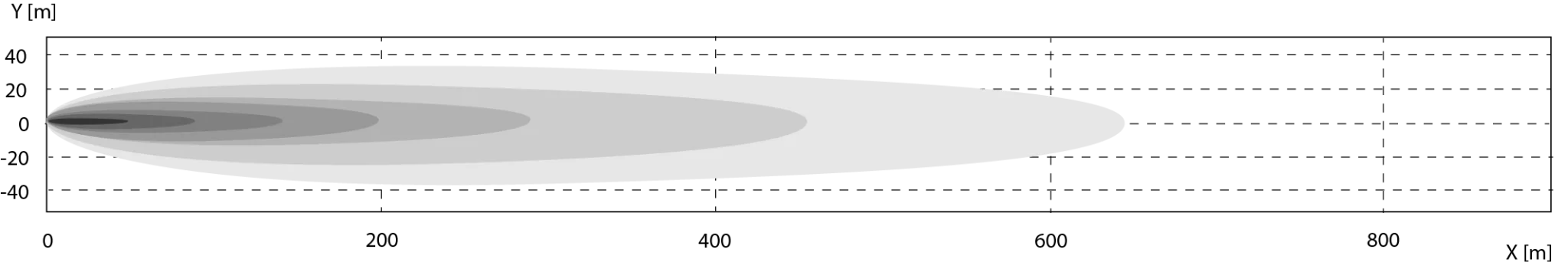

Light Pattern
Video
Technical Specifications
| SKU | 15857 |
|---|---|
| Weight | 2,3 kg |
| 1 Lux Distance | 644 m |
| Beam Pattern | Wide Driving |
| Colour Temperature | 5700 K |
| Connection | 6-pin DT |
| Housing Material | Die-cast aluminium |
| IP Rating | IP68, IP69K |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 6,900 lm |
| Operating Temperature | -40 °C to +60 °C |
| Nominal Current at 12 V | 10 A |
| Nominal Current at 24 V | 4 A |
| Theoretical Lumens | 11,900 lm |
| Total Diodes | 14 |
| Voltage | 9–33 V |
| Power at 24 V | 97 W |
| WxHxD | 212 × 211 × 80 mm |
| Power at 12 V | 120 W |
