Key Features
- Compact design with spot beam
- 9 high-quality Osram diodes
- 1 lux at 63 m
- Easy installation with DT connector
WORK LIGHT LED SPOT
Recommended retail price€ 31

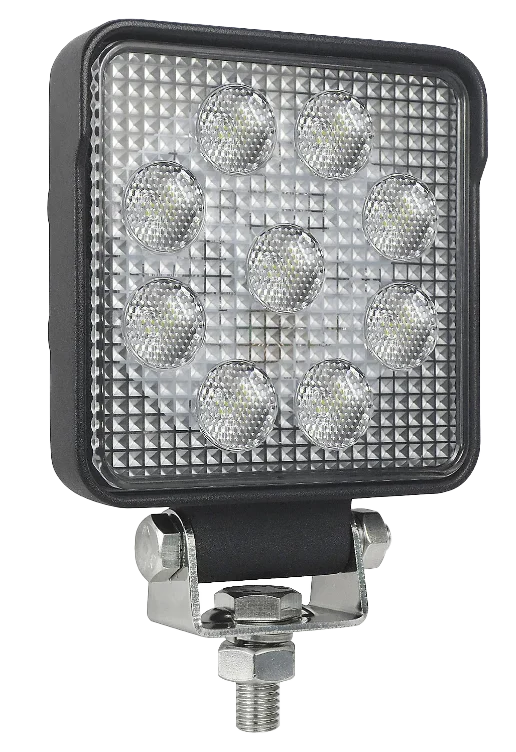

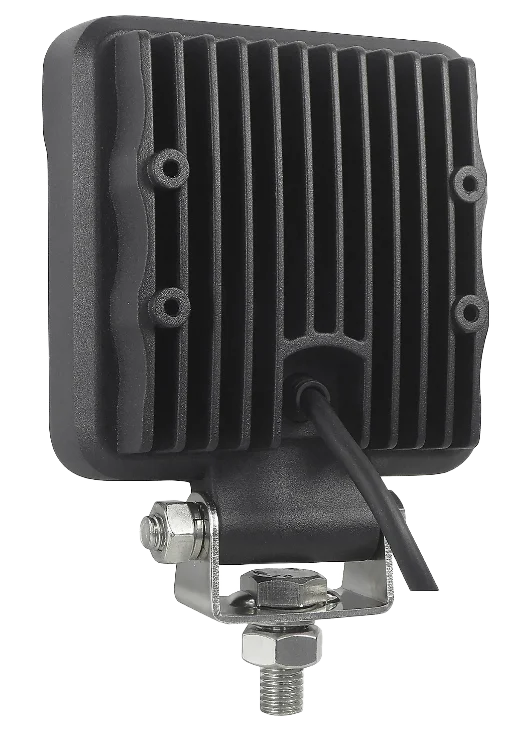

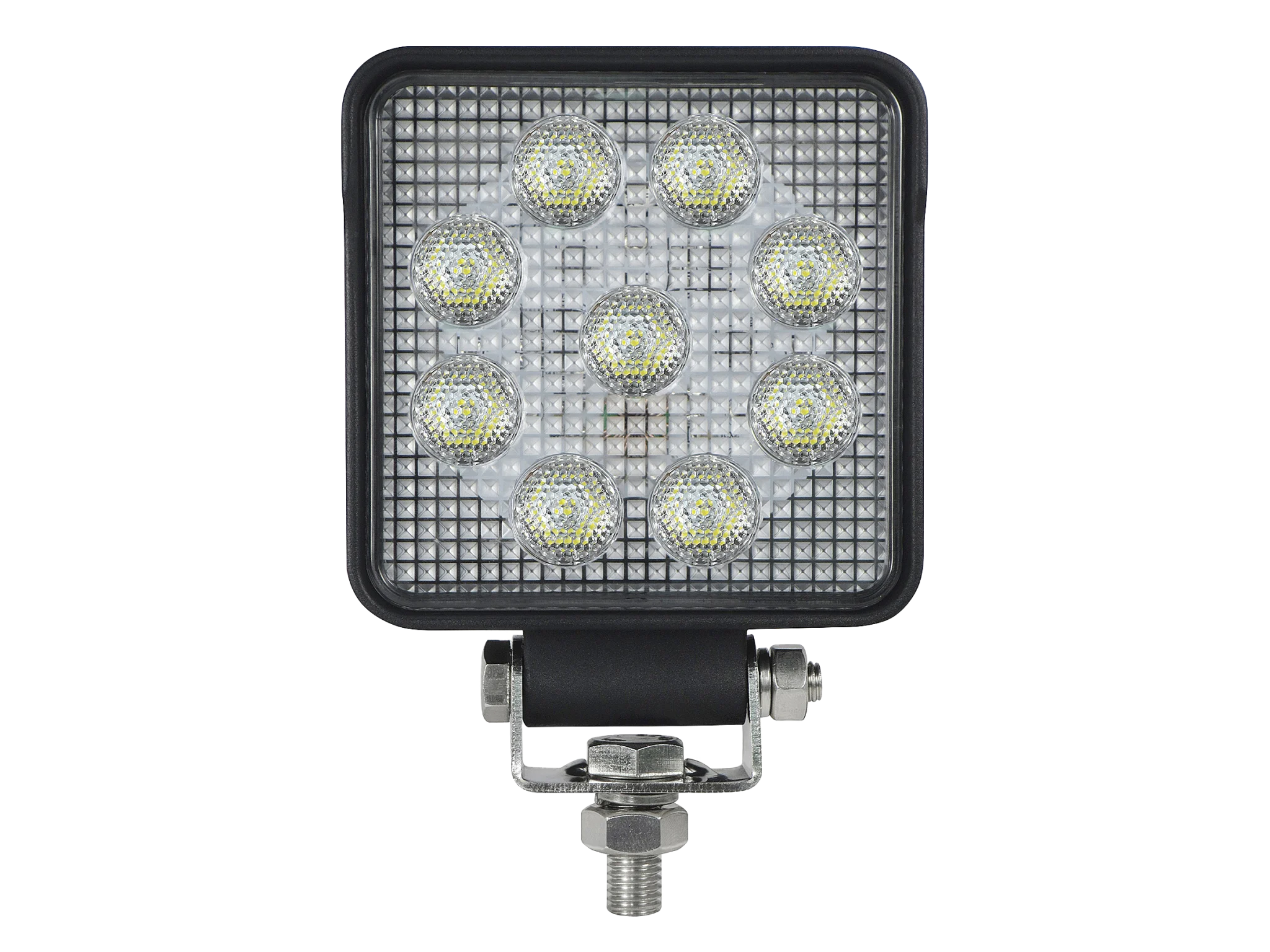

BriodLights LED Work Light Spot is a compact and versatile work light designed for maximum efficiency and durability. With a voltage range of 10–30 V, it is suitable for a wide variety of vehicles and machinery. Equipped with 9 high-quality Osram diodes, the lamp delivers reliable illumination with a spot beam pattern that ensures a wide and even light distribution across the work area. The lamp features a compact housing made of durable aluminum and is easy to install thanks to the included 0.5 m cable with DT connector. For those who prefer flood beam, this model is also available with flood beam pattern (article number. 11123).
E-Approved3 year function warranty

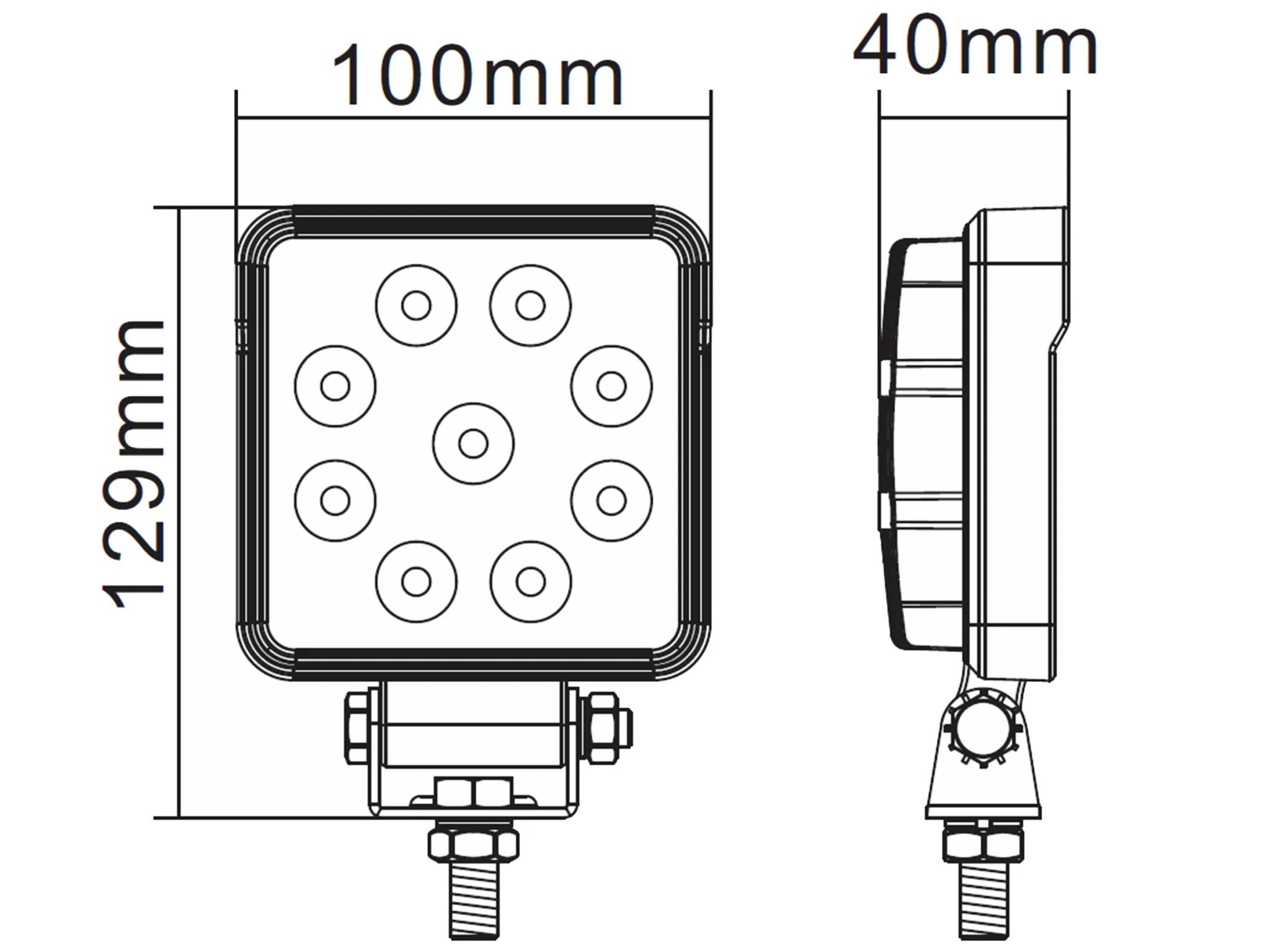

Drawing

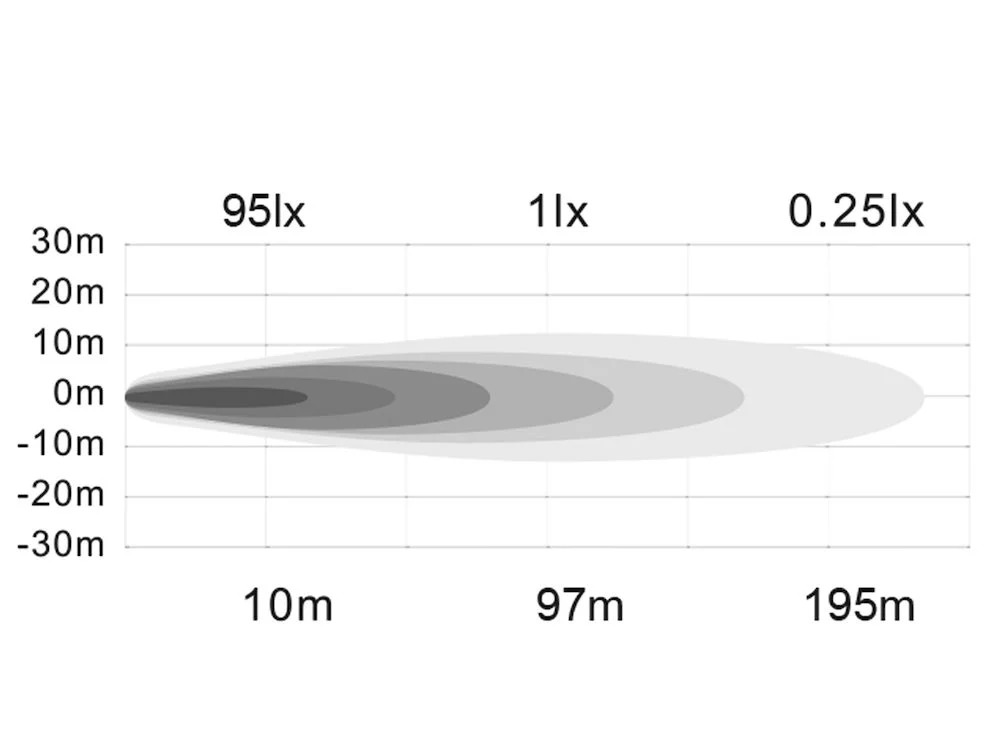

Light Pattern
Technical Specifications
| SKU | 11124 |
|---|---|
| Weight | 0,529 kg |
| Colour Temperature | 6000 K |
| Connection | DT |
| Housing Material | Aluminium |
| IP Rating | IP67 |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 1,365 lm |
| Power Consumption | 13.5 W |
| Nominal Current at 24 V | 0.625 A |
| Theoretical Lumens | 2,430 lm |
| Total Diodes | 9 |
| Voltage | 10–30 V |
| WxHxD | 100 × 129 × 40 mm |
