Drawing
Edge 2.0 LED light bar 584 mm
Recommended retail price€ 319

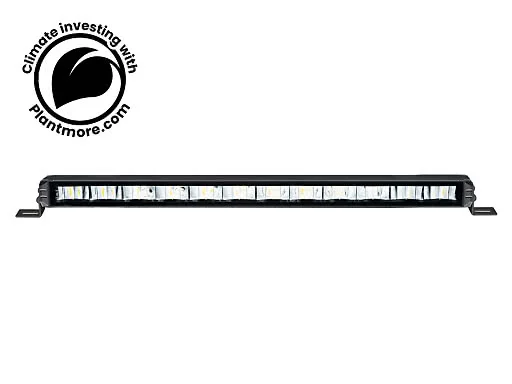

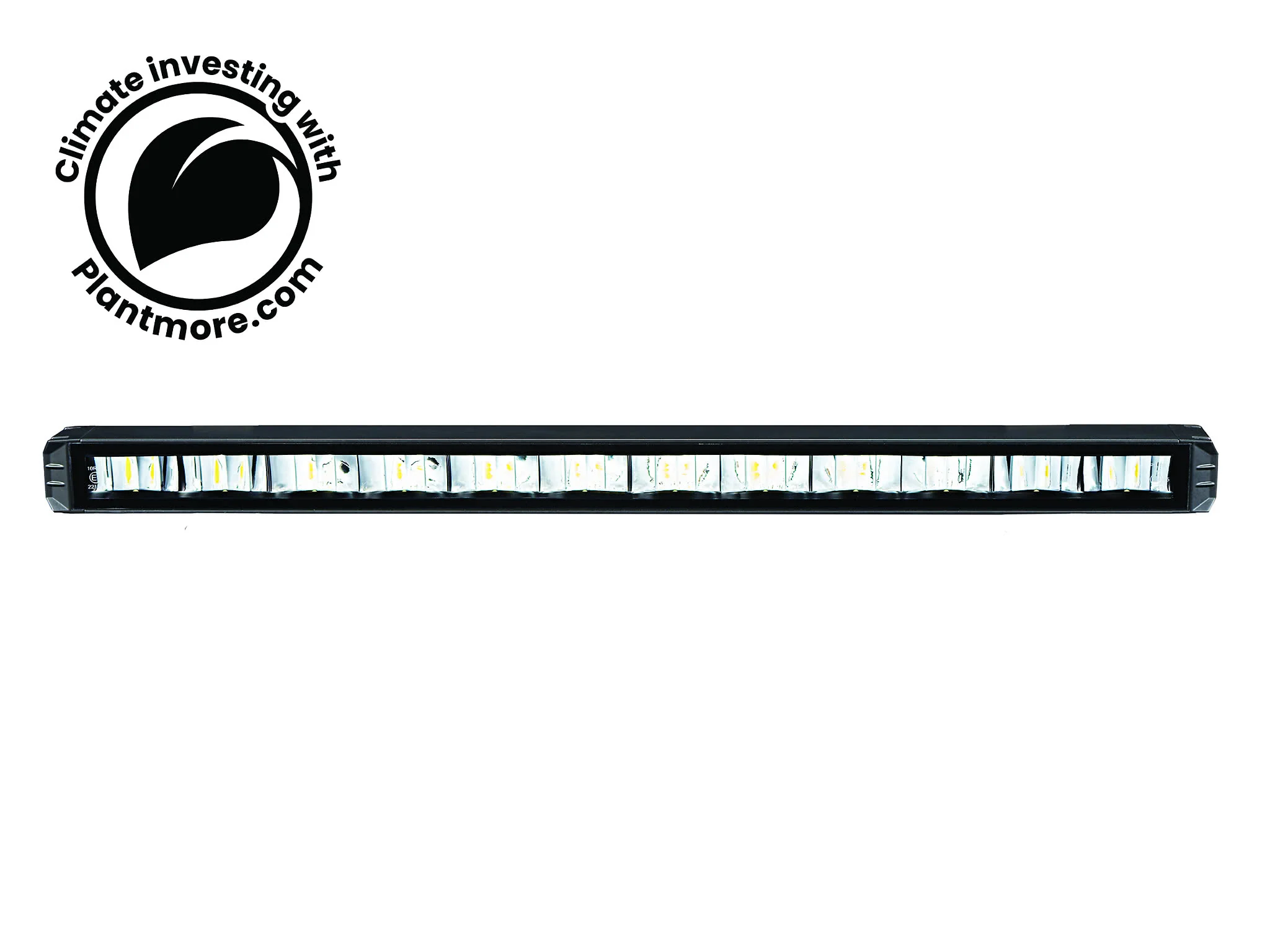

BriodLights Edge LED light bar 2.0 is the new and improved version of our popular Edge LED Light bar. The ledbar has a sloped front, integreated white position light and is aerodynamically optimized to remove wind resistance and repel dirt and snow. It also gives a discreet impression through its minimal dimensions and dark appearance. The Driving Beam light pattern provides a wide and powerful light which is perfect for all driving styles. With the boost function on the light bar measures 8700 lm. The light bar comes supplied with both side brackets and top/down sliding back brackets. ECER10. REF:45.
3 year function warranty
Light Pattern
Video
Technical Specifications
| SKU | 275-63002 |
|---|---|
| Weight | 1,7 kg |
| 1 Lux Distance | 500 m |
| Beam Pattern | Driving Beam |
| Colour Temperature | 5000 K |
| Housing Material | Aluminium |
| IP Rating | IP69K |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 7,060 lm |
| LxWxH | 584 × 38.5 × 67 mm |
| Operating Temperature | -30 °C to +80 °C |
| Power at 12 V | 105.7 W |
| Power at 24 V | 98.7 W |
| Nominal Current at 12 V | 7.6 A |
| Nominal Current at 24 V | 3.5 A |
| Theoretical Lumens | 10,080 lm |
| Total Diodes | 18 |
| Voltage | 9–33 V |
| Lumen Measured (Boost) | 8,700 lm |
| EMC | R10 |
