Drawing

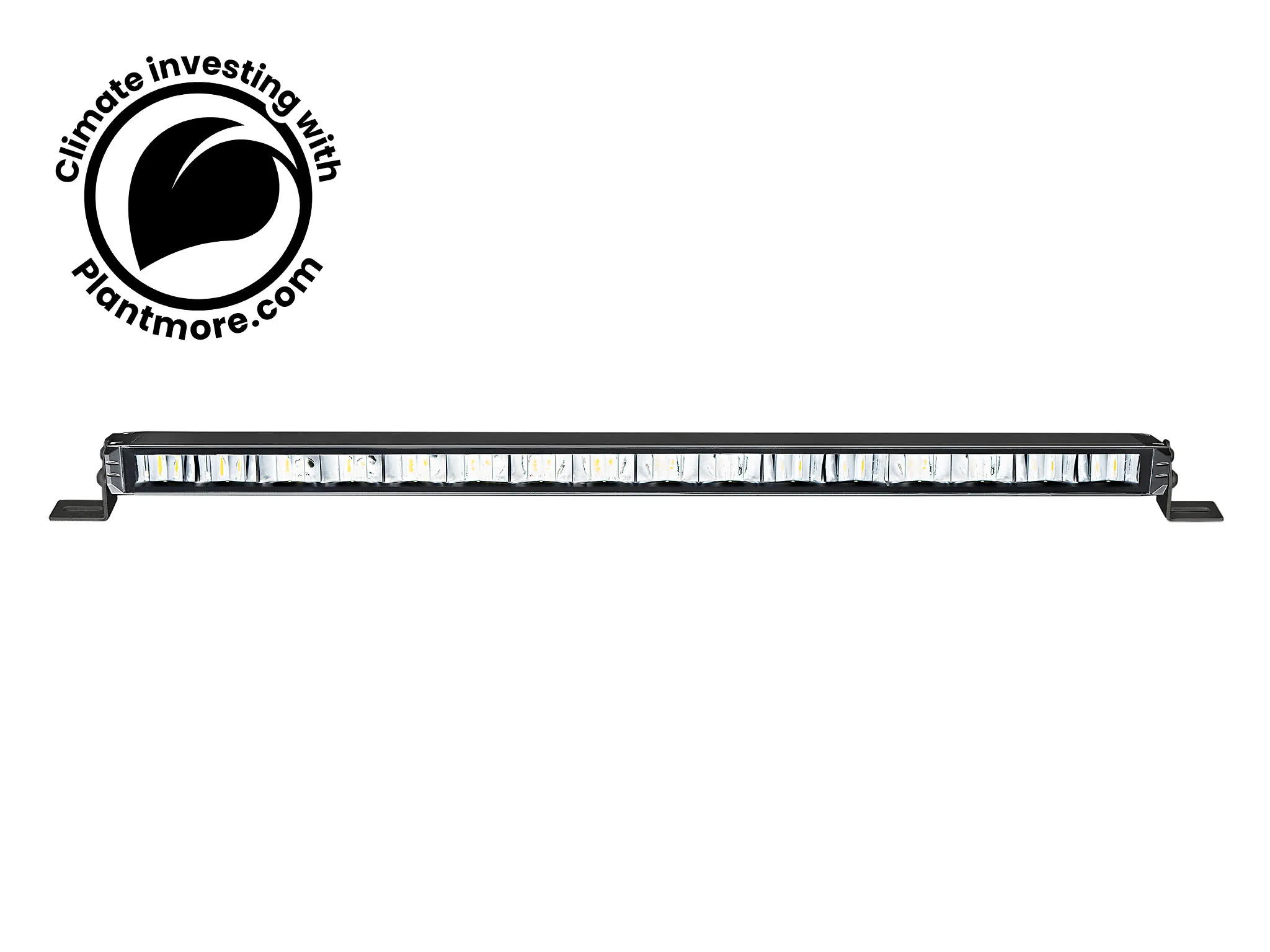

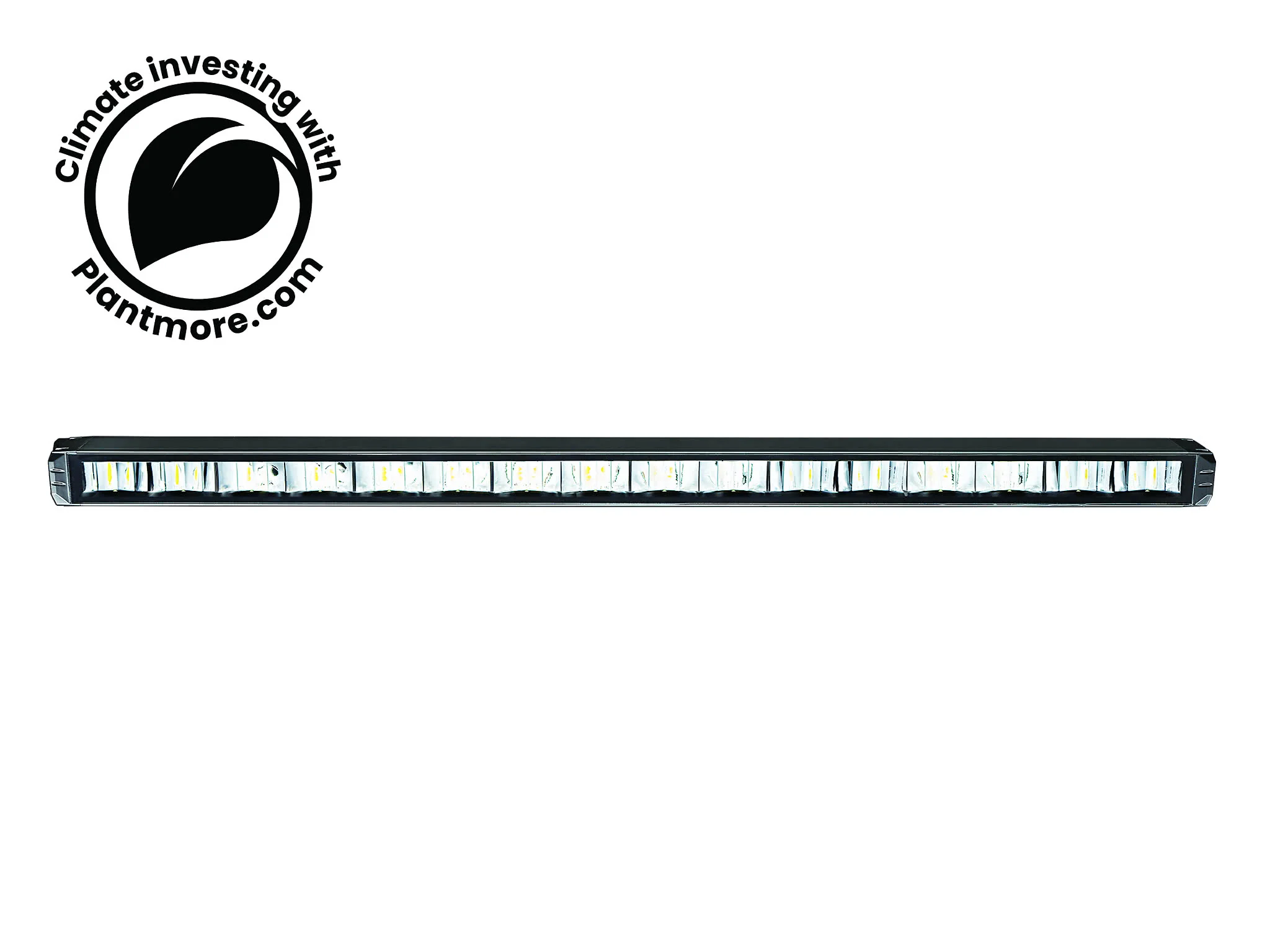

Edge 2.0 LED light bar 762 mm
Recommended retail price€ 389
BriodLights Edge LED light bar 2.0 is the new and improved version of our popular Edge LED Light bar. The ledbar has
a sloped front, integreated white position light and is aerodynamically optimized to remove wind resistance and repel
dirt and snow. It also gives a discreet impression through its minimal dimensions and dark appearance. The Driving Beam
light pattern provides a wide and powerful light which is perfect for all driving styles. With the boost function on the light bar
measures 11600 effective lumens. The light bar comes supplied with both
side brackets and top/down sliding back brackets. ECER10. REF:45.
3 year function warranty
Light Pattern
Technical Specifications
| SKU | 275-63003 |
|---|---|
| Weight | 2,1 kg |
| 1 Lux Distance | 500 m |
| Beam Pattern | Combo, Driving Beam, Flood, Spot |
| Colour Temperature | 5000 K |
| Housing Material | Aluminium |
| IP Rating | IP69K |
| Lamp Type | LED |
| Lens | PC |
| Lumen Measured | 9,800 lm |
| LxWxH | 764 × 38.5 × 67 mm |
| Operating Temperature | -30 °C to +80 °C |
| Power at 12 V | 92 W |
| Power at 24 V | 85 W |
| Nominal Current at 12 V | 13 A |
| Nominal Current at 24 V | 5.8 A |
| Theoretical Lumens | 14,000 lm |
| Total Diodes | 24 |
| Voltage | 9–33 V |
| Lumen Measured (Boost) | 11,600 lm |
| EMC | R10 |
